MS-J05
- Energy
- 5.12kWh
- Voltage
- 51.2V
- Capacity
- 100Ah
- Current
- 100A discharge; 100A / 120A charge
- Weight
- 47kg
Residential Energy Storage
MS-J05 / MS-J10 / MS-J16

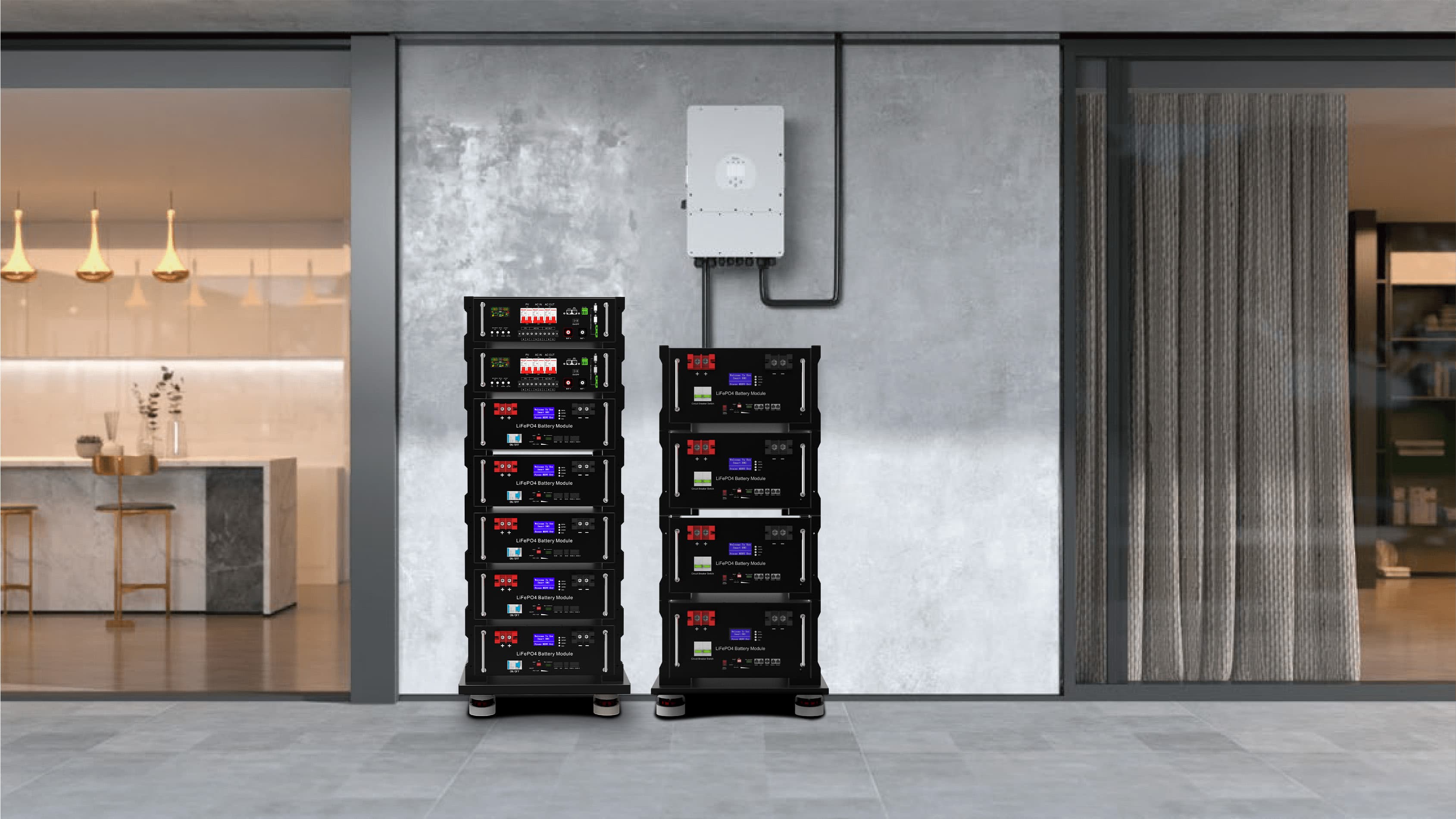

Rack Tower Energy Storage Series
Rack tower LiFePO4 storage family with 5.12kWh, 10.24kWh and 16.0kWh models for residential and commercial needs.
- Battery Energy
- 5.12-16.0kWh
- Nominal Voltage
- 51.2V
- Parallel Units
- Up to 15
- Cycle Life
- 6,000 cycles
Models & Configurations
One Series. Confirmed Options.
All models and configurations remain on this series page. Select final specifications according to the project requirement.
MS-J10
- Energy
- 10.24kWh
- Voltage
- 51.2V
- Capacity
- 200Ah
- Current
- 100A / 200A charge and discharge
- Weight
- 89kg
MS-J16
- Energy
- 16.0kWh
- Voltage
- 51.2V
- Capacity
- 314Ah
- Current
- 200A charge and discharge
- Weight
- 105kg
Key Benefits
Designed Around Real Energy Needs.
01
Three capacity models
02
Up to 15 batteries in parallel
03
Intelligent BMS protection
04
Up to 1C continuous charging and discharging
05
Wi-Fi monitoring
Applications
Residential StorageCommercial StorageBackup Power
Technical Specifications
Confirmed Product Data.
- Protection Class
- IP20
- Installation
- Wall-mounted / vertical / mobile
- Inverter Option
- 5kW / 6.2kW
- PV Input
- 8,500W max.
- Monitoring
- Wi-Fi application support
