MS-B05
- Energy
- 5.12kWh
- Voltage
- 51.2V
- Capacity
- 100Ah
- Continuous Current
- 100A charge / discharge
- Weight
- 51kg
Residential Energy Storage
MS-B05 / MS-B10
Wall-Mount Energy Storage Series
Compact 51.2V wall-mount LiFePO4 battery series with 5.12kWh and 10.24kWh models and parallel expansion.
- Battery Energy
- 5.12 / 10.24kWh
- Nominal Voltage
- 51.2V
- Parallel Expansion
- Up to 15 units
- Cycle Life
- 6,000 cycles
Models & Configurations
One Series. Confirmed Options.
All models and configurations remain on this series page. Select final specifications according to the project requirement.
MS-B10
- Energy
- 10.24kWh
- Voltage
- 51.2V
- Capacity
- 200Ah
- Continuous Current
- 200A charge / discharge
- Weight
- 96kg
Key Benefits
Designed Around Real Energy Needs.
01
Compact 157.5mm wall profile
02
Up to 15 batteries in parallel
03
Built-in intelligent BMS
04
Wi-Fi application monitoring
05
LCD display

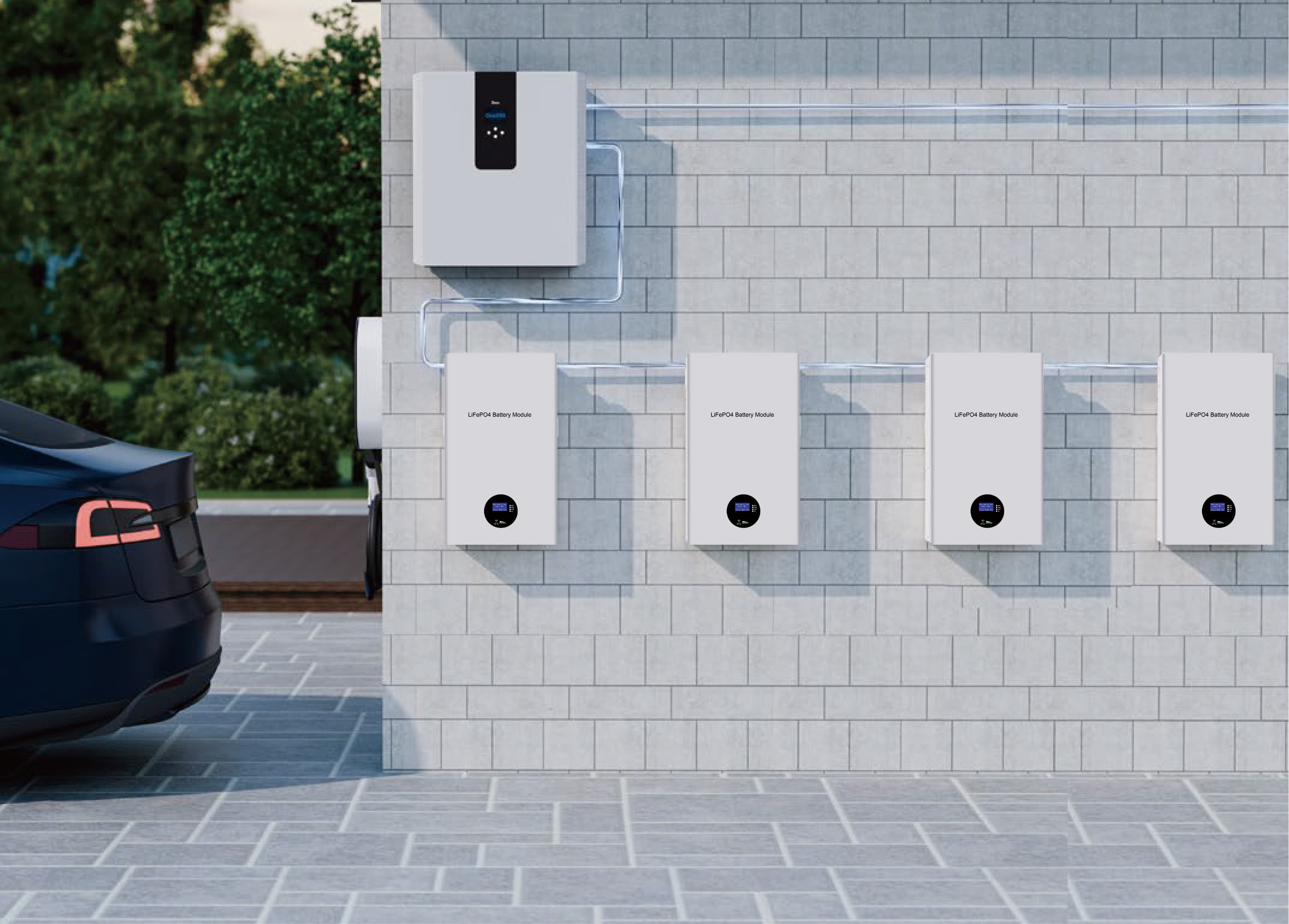

Applications
Residential StorageHome BackupSolar Self-Consumption
Technical Specifications
Confirmed Product Data.
- Communication
- RS485 / RS232 / CAN
- Charge Cut-Off
- 58.4V
- Discharge Cut-Off
- 44.8V
- Protection Class
- IP20
- Installation
- Wall-mounted

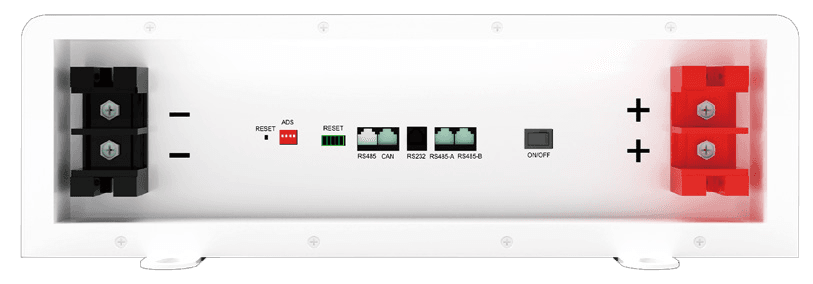

Product Details
Related Products
Compare Related Series.
Residential Energy Storage
MS-L03 / MS-L05
Vertical Wall-Mount Energy Storage All-In-One
- Rated Power
- 3-6.2kW
- Battery Module
- 5.12kWh
Portable & Mobile Energy Storage
MS-Y15
Mobile Energy Storage Series
- Battery Energy
- 14.33-16.07kWh
- Nominal Voltage
- 51.2V
Project Inquiry
Discuss the Right MS-B05 / MS-B10 Configuration.
Share your project location, application, capacity and delivery requirements with the AOBEC team.
