MS-G50
- Energy
- 51.2kWh
- Voltage
- 512V
- Capacity
- 100Ah
- Charge / Discharge Cut-Off
- 584V / 448V
- Cycle Life
- 6,000 cycles
Commercial & Industrial ESS
MS-G50 / MS-G60 / MS-G100 / MS-G240

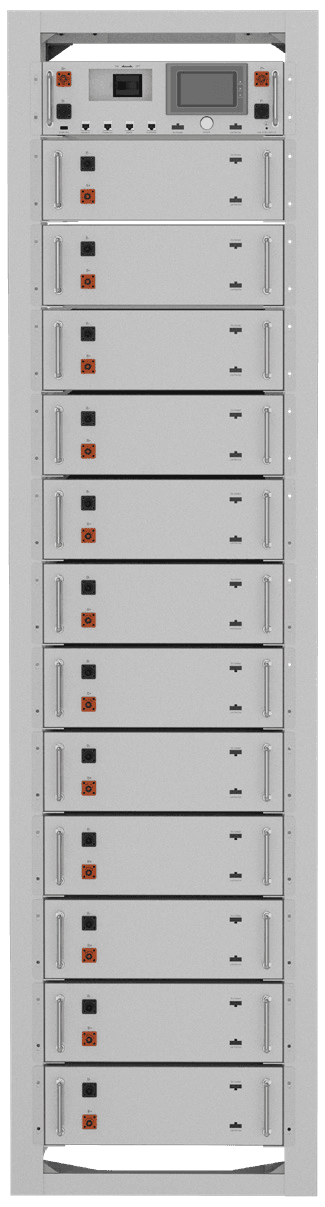

Rack High Voltage Energy Storage System
High-voltage rack energy storage family spanning 51.2kWh to 241.15kWh for indoor rack and cabinet installations.
- Energy Range
- 51.2-241.15kWh
- Voltage Range
- 358.4-768V
- Communication
- RS232 / RS485 / CAN
- Design Life
- 15 years
Models & Configurations
One Series. Confirmed Options.
All models and configurations remain on this series page. Select final specifications according to the project requirement.
MS-G60
- Energy
- 61.44kWh
- Voltage
- 614.4V
- Capacity
- 100Ah
- Charge / Discharge Cut-Off
- 700.8V / 537.6V
- Cycle Life
- 6,000 cycles
MS-G100
- Energy
- 100 / 112kWh
- Voltage
- 358.4V
- Capacity
- 280 / 314Ah
- Charge / Discharge Cut-Off
- 408.8V / 313.6V
- Cycle Life
- 8,000 cycles
MS-G240
- Energy
- 215.04 / 241.15kWh
- Voltage
- 768V
- Capacity
- 280 / 314Ah
- Charge / Discharge Cut-Off
- 876V / 672V
- Cycle Life
- 8,000 cycles
Key Benefits
Designed Around Real Energy Needs.
01
Four high-voltage system models
02
Parallel capacity expansion
03
Integrated electrical protection
04
Touchscreen and application monitoring
05
Optional Wi-Fi upgrade

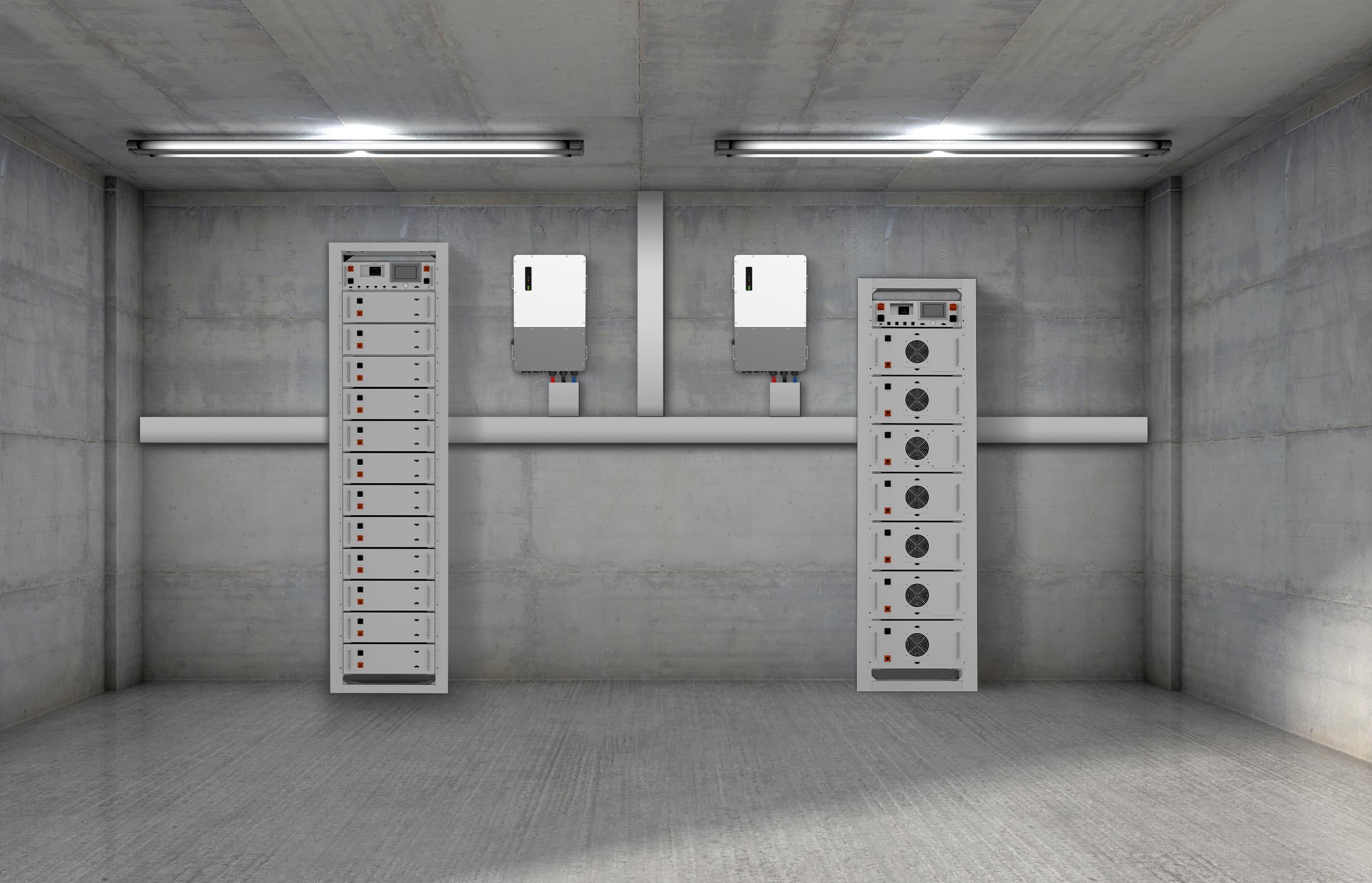

Applications
Commercial Energy StorageIndustrial Energy StorageRenewable Energy Integration
Technical Specifications
Confirmed Product Data.
- Battery Material
- Lithium iron phosphate
- Standard Charge Rate
- 0.2C
- Fast Charge Rate
- 0.5C / 1C by model
- Operating Temperature
- 0-60°C
- Installation
- Indoor cabinet / rack stacking / outdoor cabinet
Product Details
Related Products
Compare Related Series.
Commercial & Industrial ESS
MS-G176-60K
Outdoor High Voltage Energy Storage System
- Rated Energy
- 176.8kWh
- Rated Power
- 60kW
Residential Energy Storage
MS-J05 / MS-J10 / MS-J16
Rack Tower Energy Storage Series
- Battery Energy
- 5.12-16.0kWh
- Nominal Voltage
- 51.2V
Project Inquiry
Discuss the Right MS-G50 / MS-G60 / MS-G100 / MS-G240 Configuration.
Share your project location, application, capacity and delivery requirements with the AOBEC team.
