MS-G176-60K
- Rated Energy
- 176.8kWh
- Rated Power
- 60kW
- Composition
- 1P176S
- Working Voltage
- 492.8-642.4V
- System Efficiency
- 93%
Commercial & Industrial ESS
MS-G176-60K

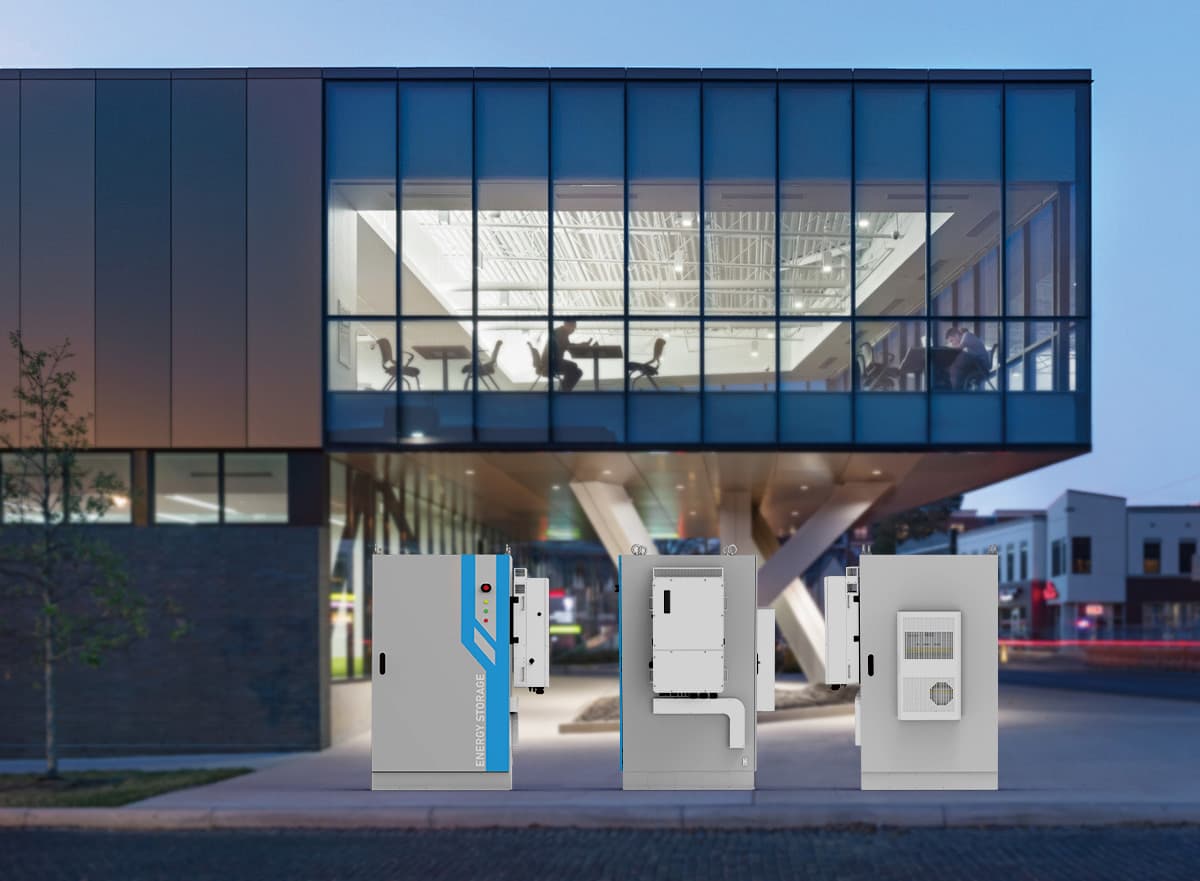

Outdoor High Voltage Energy Storage System
A 176.8kWh outdoor high-voltage energy storage system with 60kW charge and discharge power and integrated hybrid inverter data.
- Rated Energy
- 176.8kWh
- Rated Power
- 60kW
- Protection
- IP54
- Cycle Life
- 8,000 cycles
Models & Configurations
One Series. Confirmed Options.
All models and configurations remain on this series page. Select final specifications according to the project requirement.
Key Benefits
Designed Around Real Energy Needs.
01
Real-time status and fault monitoring
02
Cloud platform access
03
PACK-level immersion fire protection
04
Integrated pre-assembled system
05
Multiple circuit protection
Applications
Commercial & Industrial StorageRenewable Energy IntegrationOutdoor Energy Projects
Technical Specifications
Confirmed Product Data.
- Battery
- 563.2V 314Ah LiFePO4
- Cooling
- Air-cooled
- Fire Type
- Aerogel
- Dimensions
- 1416 × 1100 × 1900mm
- Altitude
- Up to 3,000m; derating above 2,000m
Engineering & System
System-Level Technical Information.
System Architecture
- Rated Energy
- 176.8kWh
- Composition
- 1P176S
- Working Voltage
- 492.8-642.4V
- Efficiency
- 93%
Hybrid Inverter
- Rated Charge / Discharge Power
- 60kW
- Grid Voltage
- 380 / 400VAC, 3W + N + PE
- Maximum Efficiency
- 97.5%
PV Input
- Maximum PV Input Power
- 100kW
- Operating Voltage
- 125-1000VDC
- Start-Up Voltage
- 200VDC
- Input Channels
- 8
Cooling and Fire Protection
- Cooling
- Air-cooled
- Fire Type
- Aerogel
- Battery Protection
- PACK-level immersion fire protection
Environmental and Installation
- Protection Class
- IP54
- Altitude
- Up to 3,000m; derating above 2,000m
- Dimensions
- 1416 × 1100 × 1900mm
Communication and EMS
- Monitoring
- Real-time status and fault recording
- Platform
- Cloud platform with multi-device access
Related Products
Compare Related Series.
Commercial & Industrial ESS
MS-G50 / MS-G60 / MS-G100 / MS-G240
Rack High Voltage Energy Storage System
- Energy Range
- 51.2-241.15kWh
- Voltage Range
- 358.4-768V
Project Inquiry
Discuss the Right MS-G176-60K Configuration.
Share your project location, application, capacity and delivery requirements with the AOBEC team.
