MS-T01
2 configurations192Wh battery pack576Wh battery pack
- Rated Power
- 300W / 500W
- Output Voltage
- 220 / 230 / 240VAC
- Battery Type
- LiFePO4
- Nominal Voltage
- 12.8V
- Battery Energy
- 192Wh / 576Wh
- Cycle Life
- 2,000 cycles (70% EOL, 0.5C, 25°C)
Portable & Mobile Energy Storage

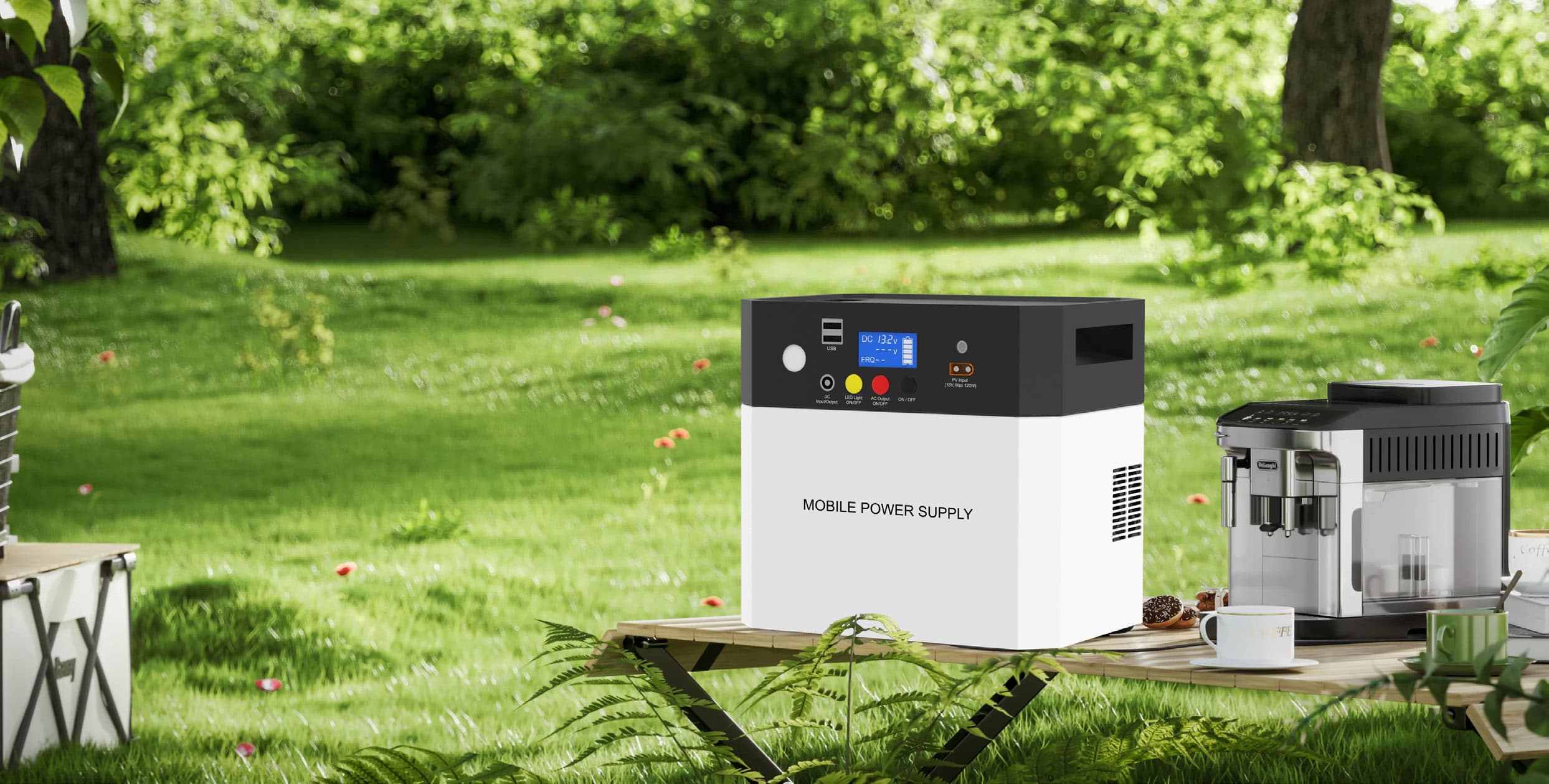

MS-T01
Outdoor Mobile Energy Storage Power Supply
Compact LiFePO4 mobile power supply with AC, DC, USB and solar charging support for portable and emergency power use.
- Rated Power
- 300W / 500W
- Battery Energy
- 192Wh / 576Wh
- PV Input
- 150W max.
- Cycle Life
- 2,000 cycles
Models & Configurations
One Series. Confirmed Options.
All models and configurations remain on this series page. Select final specifications according to the project requirement.
Key Benefits
Designed Around Real Energy Needs.
01
Built-in battery management protection
02
Multiple AC and DC output interfaces
03
AC, vehicle and solar charging options
04
Integrated emergency lighting
Applications
Portable PowerEmergency BackupOutdoor Use
Technical Specifications
Confirmed Product Data.
- PV Charging
- PWM
- PV Operating Voltage
- 15-21VDC
- Maximum PV Input Current
- 10A
- Operating Temperature
- 0-40°C
- Dimensions
- H229 × W170 × T210mm
- Output Interfaces
- AC, DC, USB-A and USB-C
Related Products
Compare Related Series.
Portable & Mobile Energy Storage
MS-T04
Outdoor Mobile Energy Storage Power Supply
- Rated Power
- 1,200W
- Battery Energy
- 4.044kWh
Portable & Mobile Energy Storage
MS-T08
Outdoor Mobile Energy Storage Power Supply
- Rated Power
- 1.6-3kW
- Battery Energy
- 2.56-8.03kWh
Project Inquiry
Discuss the Right MS-T01 Configuration.
Share your project location, application, capacity and delivery requirements with the AOBEC team.
