MS-T08-3143S1
- Rated Power
- 1,600W
- Battery Energy
- 4.00kWh
- Nominal Voltage
- 12.8V
- Capacity
- 314Ah
- Cycle Life
- 11,000 cycles
Portable & Mobile Energy Storage
MS-T08

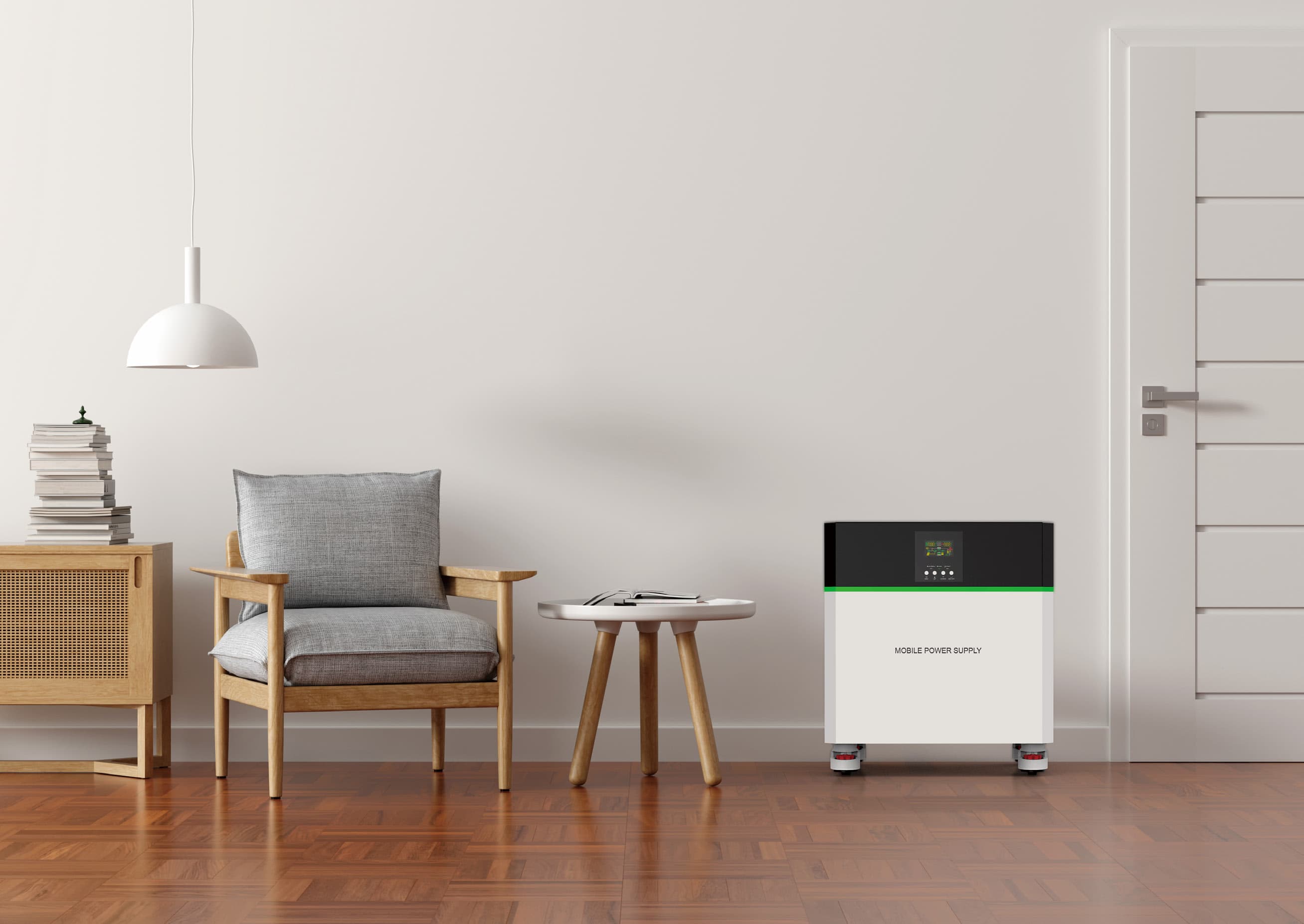

Outdoor Mobile Energy Storage Power Supply
Mobile pure sine wave energy storage platform with three confirmed battery and inverter configurations up to 8.03kWh.
- Rated Power
- 1.6-3kW
- Battery Energy
- 2.56-8.03kWh
- PV Input
- Up to 3,000W
- Output
- 220-240VAC
Models & Configurations
One Series. Confirmed Options.
All models and configurations remain on this series page. Select final specifications according to the project requirement.
MS-T08-1003S1
- Rated Power
- 3,000W
- Battery Energy
- 2.56kWh
- Nominal Voltage
- 25.6V
- Capacity
- 100Ah
- Cycle Life
- 6,000 cycles
MS-T08-3142S1
- Rated Power
- 3,000W
- Battery Energy
- 8.03kWh
- Nominal Voltage
- 25.6V
- Capacity
- 314Ah
- Cycle Life
- 11,000 cycles
Key Benefits
Designed Around Real Energy Needs.
01
Three confirmed system configurations
02
Built-in UPS transfer
03
Optional Wi-Fi monitoring
04
Multiple AC, DC and USB interfaces
Applications
Home BackupMobile PowerOff-Grid Loads
Technical Specifications
Confirmed Product Data.
- Output Waveform
- Pure sine wave
- PV Charging
- MPPT
- PV Operating Voltage
- 90-350VDC
- Maximum Hybrid Charging Current
- 120A
- Dimensions
- L480 × W355 × H526.5mm
Related Products
Compare Related Series.
Portable & Mobile Energy Storage
MS-T04
Outdoor Mobile Energy Storage Power Supply
- Rated Power
- 1,200W
- Battery Energy
- 4.044kWh
Portable & Mobile Energy Storage
MS-T05 / MS-T10
Wall-Mount Mobile Inverter Battery Integrated Series
- Rated Power
- 5kW / 6.2kW
- Battery Energy
- 5.32 / 10.49kWh
Project Inquiry
Discuss the Right MS-T08 Configuration.
Share your project location, application, capacity and delivery requirements with the AOBEC team.
