MS-T12
2 configurations10.49kWh / 205Ah12.03kWh / 235Ah
- Rated Power
- 6.2kW
- Battery Energy
- 10.49 / 12.03kWh
- Nominal Voltage
- 51.2V
- Cycle Life
- 6,000 cycles
- Maximum Parallel Batteries
- 14 units
Portable & Mobile Energy Storage

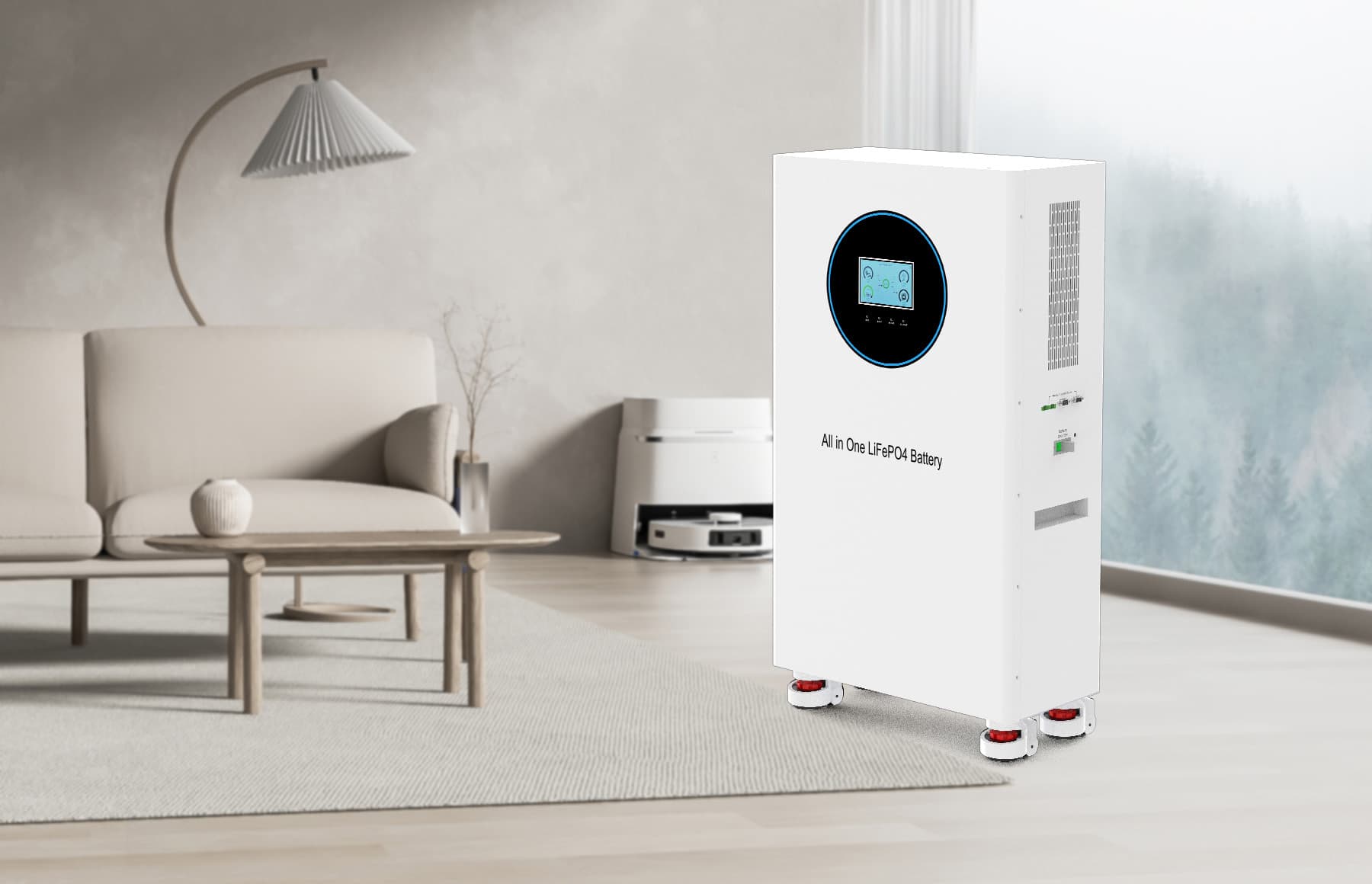

MS-T12
Mobile Inverter Battery Integrated Series
A 6.2kW integrated mobile inverter and LiFePO4 battery system with expandable battery capacity and Wi-Fi monitoring.
- Rated Power
- 6.2kW
- Battery Energy
- 10.49 / 12.03kWh
- PV Input
- 8,500W max.
- Parallel Expansion
- Up to 14 units
Models & Configurations
One Series. Confirmed Options.
All models and configurations remain on this series page. Select final specifications according to the project requirement.
Key Benefits
Designed Around Real Energy Needs.
01
Integrated hybrid inverter and battery
02
Expandable battery capacity
03
PV and AC charging
04
Wi-Fi application monitoring
05
Natural cooling
Applications
Residential BackupSolar StorageMobile Installation
Technical Specifications
Confirmed Product Data.
- Output Voltage
- 220-240VAC
- Peak Power
- 12,400VA
- PV Charging
- MPPT
- PV Operating Voltage
- 120-400VDC
- Maximum Hybrid Charging Current
- 120A
Related Products
Compare Related Series.
Portable & Mobile Energy Storage
MS-T05 / MS-T10
Wall-Mount Mobile Inverter Battery Integrated Series
- Rated Power
- 5kW / 6.2kW
- Battery Energy
- 5.32 / 10.49kWh
Portable & Mobile Energy Storage
MS-T16
Mobile Inverter Battery Integrated Series
- Rated Power
- 6.2-11kW
- Battery Energy
- 16.07kWh
Project Inquiry
Discuss the Right MS-T12 Configuration.
Share your project location, application, capacity and delivery requirements with the AOBEC team.
